[JAX] 병렬컴퓨팅 예제 - jax.pmap으로 신경망 학습 예제

JAX를 통해 병렬로 뉴럴 네트워크를 학습하는 예제를 고민하였다.

JAX에서 제공해주는 예제도 있지만 이는 아주 심플한 선형 모델의 파라미터를 regression하는 문제이기 때문에 실제 뉴럴 네트워크 모델과는 괴리가 좀 있어서 직접 예제를 만들었다.



JAX 0.3.1. 버전



1. JAX에서 제공하는 예제



import jax
jax.devices()

>> [GpuDevice(id=0, process_index=0),
 GpuDevice(id=1, process_index=0),
 GpuDevice(id=2, process_index=0),
 GpuDevice(id=3, process_index=0)]



필자는 gpu 4개를 가지고 병렬 컴퓨팅을 사용했다.



import numpy as np
import jax.numpy as jnp

from typing import NamedTuple, Tuple
import functools

# class for storing model parameters
class Params(NamedTuple):
    weight: jnp.ndarray
    bias: jnp.ndarray

# function for initializing model parameters
def init(rng) -> Params:
    """Returns the initial model params."""
    weights_key, bias_key = jax.random.split(rng)
    weight = jax.random.normal(weights_key, ())
    bias = jax.random.normal(bias_key, ())
    return Params(weight, bias)

LEARNING_RATE = 0.005

# function for computing the MSE loss
def loss_fn(params: Params, xs: jnp.ndarray, ys: jnp.ndarray) -> jnp.ndarray:
    """Computes the least squares error of the model's predictions on x against y."""
    pred = params.weight * xs + params.bias
    return jnp.mean((pred - ys) ** 2)

# function for performing one SGD update step (fwd & bwd pass)
@functools.partial(jax.pmap, axis_name='num_devices')
def update(params: Params, xs: jnp.ndarray, ys: jnp.ndarray) -> Tuple[Params, jnp.ndarray]:
    loss, grads = jax.value_and_grad(loss_fn)(params, xs, ys)
    grads = jax.lax.pmean(grads, axis_name='num_devices')
    loss = jax.lax.pmean(loss, axis_name='num_devices')
    new_params = jax.tree_map(
        lambda param, g: param - g * LEARNING_RATE, params, grads)
    return new_params, loss

위 코드에서는 파라미터를 초기화하는 함수, 손실 함수, 파라미터를 업데이트하는 함수를 각각 정의한다.



# Generate true data from y = w*x + b + noise
true_w, true_b = 2, -1
xs = np.random.normal(size=(128, 1))
noise = 0.5 * np.random.normal(size=(128, 1))
ys = xs * true_w + true_b + noise

# Initialise parameters and replicate across devices.
params = init(jax.random.PRNGKey(123))
n_devices = jax.local_device_count()
replicated_params = jax.tree_map(lambda x: jnp.array([x] * n_devices), params)

추정하고자 하는 파라미터 true_w, true_b는 2와 -1로 설정되어있다.

이를 바탕으로 학습에 사용할 xs,ys를 얻는다.

추정하고자 하는 파라미터(w,b)를 일단 각 디바이스 갯수만큼 불러와서 replicated_params에 넣는다.



def split(arr):
    """Splits the first axis of `arr` evenly across the number of devices."""
    return arr.reshape(n_devices, arr.shape[0] // n_devices, *arr.shape[1:])

# Reshape xs and ys for the pmapped `update()`.
x_split = split(xs)
y_split = split(ys)

type(x_split)



학습할 데이터는 128개의 (xs,ys)쌍이었는데 이를 병렬로 사용하기 위해 (4,32,1) shape으로 바꾼다. (device 개수가 4개이므로)



def type_after_update(name, obj):
  print(f"after first `update()`, `{name}` is a", type(obj))

# Actual training loop.
for i in range(1000):
    # This is where the params and data gets communicated to devices:
    replicated_params, loss = update(replicated_params, x_split, y_split)

    # The returned `replicated_params` and `loss` are now both ShardedDeviceArrays,
    # indicating that they're on the devices.
    # `x_split`, of course, remains a NumPy array on the host.
    if i == 0:
        type_after_update('replicated_params.weight', replicated_params.weight)
        type_after_update('loss', loss)
        type_after_update('x_split', x_split)

    if i % 100 == 0:
        # Note that loss is actually an array of shape [num_devices], with identical
        # entries, because each device returns its copy of the loss.
        # So, we take the first element to print it.
        print(f"Step {i:3d}, loss: {loss[0]:.3f}")


# Plot results.

# Like the loss, the leaves of params have an extra leading dimension,
# so we take the params from the first device.
params = jax.device_get(jax.tree_map(lambda x: x[0], replicated_params))

그 다음에 업데이트 함수를 통해 파라미터를 구하면 끝.



아래는 학습에서 출력된 결과이다.

after first `update()`, `replicated_params.weight` is a <class 'jaxlib.xla_extension.pmap_lib.ShardedDeviceArray'>
after first `update()`, `loss` is a <class 'jaxlib.xla_extension.pmap_lib.ShardedDeviceArray'>
after first `update()`, `x_split` is a <class 'numpy.ndarray'>
Step   0, loss: 5.860
Step 100, loss: 0.837
Step 200, loss: 0.280
Step 300, loss: 0.218
Step 400, loss: 0.212
Step 500, loss: 0.211
Step 600, loss: 0.211
Step 700, loss: 0.211
Step 800, loss: 0.211
Step 900, loss: 0.211

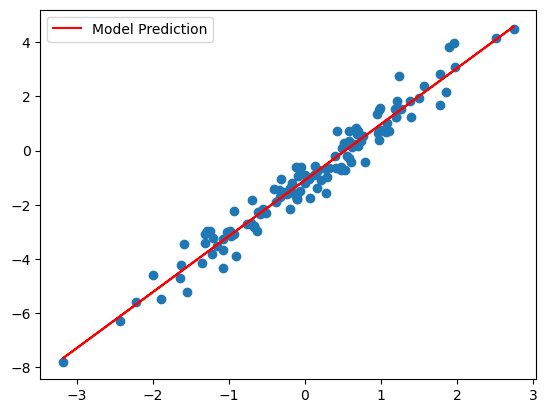

결과를 출력하면 다음과 같이 비교적 정확한 w,b를 추정한 것을 알 수 있다.



import matplotlib.pyplot as plt
plt.scatter(xs, ys)
plt.plot(xs, params.weight * xs + params.bias, c='red', label='Model Prediction')
plt.legend()
plt.show()





여기까지 하면 병렬로 한 것은 알겠는데 실제 뉴럴 네트워크를 학습하려면 어떻게 해야할지 막막할 수 있다.





2. 내가 만든 뉴럴 네트워크 예제



import jax
import jax.numpy as jnp
from jax import grad, jit, vmap, pmap
from jax import random
from jax.example_libraries import optimizers
from typing import NamedTuple, Tuple
import functools

# class for storing model parameters
class Params(NamedTuple):
    weight: jnp.ndarray
    bias: jnp.ndarray

# Define the neural network
def relu(x):
    return jnp.maximum(0, x)

def predict(params, inputs):
    w, b = params
    print(w.shape)
    print(b.shape)
    return relu(jnp.dot(inputs, w) + b)

def loss_fn(params, inputs, targets):
    predictions = predict(params, inputs)
    return jnp.mean((predictions - targets) ** 2)

# Define a simple neural network model
def init_params(layer_sizes, key):
    params = []
    for i in range(1, len(layer_sizes)):
        key, subkey = random.split(key)
        w = random.normal(subkey, (layer_sizes[i-1], layer_sizes[i]))
        b = jnp.zeros(layer_sizes[i])
        params.extend([w, b])
    return params

# Initialize the parameters
def initialize_params(input_size, output_size, key):
    params = []
    w_key, b_key = random.split(key)
    w = random.normal(w_key, (input_size, output_size))
    b = random.normal(b_key, (output_size,))
    params.extend([w, b])
    return params

# Initialize devices
num_devices = jax.local_device_count()
devices = jax.local_devices()
print(f'Using {num_devices} devices')

# Prepare data
input_size, output_size = 10, 1
batch_size = 64
num_batches = 1000

keys = random.split(random.PRNGKey(0), num_devices)
params = initialize_params(input_size, num_devices, keys[0])

# Generate some dummy data
inputs = random.normal(random.PRNGKey(1), (num_devices, batch_size, input_size))
targets = random.normal(random.PRNGKey(2), (num_devices, batch_size, output_size))

# Initialize the Adam optimizer
learning_rate = 0.001
init_fun, update_fun, get_params = optimizers.adam(learning_rate)
opt_state = init_fun(params)
replicated_params = jax.tree_map(lambda x: jnp.array([x] * num_devices), params)

# Define the update function
@functools.partial(jax.pmap, axis_size=4,axis_name='num_devices')
def update(params, xs: jnp.ndarray, ys: jnp.ndarray) -> Tuple[Params, jnp.ndarray]:

    # Compute the gradients on the given minibatch (individually on each device).
    loss, grads = jax.value_and_grad(loss_fn)(params, xs, ys)

    grads = jax.lax.pmean(grads, axis_name='num_devices')
    loss = jax.lax.pmean(loss, axis_name='num_devices')

    opt_state = init_fun(params)
    update_opt_state= update_fun(0, grads, opt_state)
    update_params = get_params( update_opt_state )

    # new params
    params_new = []
    params_new.extend([update_params[0], update_params[1]])
    print("update : ", update_params[0].shape)
    new_params = jax.tree_map(lambda x: jnp.array([x] * num_devices), params_new)
    print("new params : ", new_params[0].shape)
    return params_new, loss

num_iter = 3
# Parallel training
for i in range(num_iter):

    replicated_params, loss = update(replicated_params, inputs, targets)
    print("replication : ", replicated_params[0].shape)
    print(f"iteration : {i}, loss : {loss}")

print("Training complete.")





출력 결과

(10, 4) #<- prediction에 있는 weight
(4,) #<- prediction에 있는 bias
update :  (10, 4)
new params :  (4, 10, 4)
replication :  (4, 10, 4)
iteration : 0, loss : [5.9947453 5.9947453 5.9947453 5.9947453]
replication :  (4, 10, 4)
iteration : 1, loss : [5.983531 5.983531 5.983531 5.983531]
replication :  (4, 10, 4)
iteration : 2, loss : [5.972336 5.972336 5.972336 5.972336]
Training complete.
