[LaTeX] LaTeX 안에 코드 블록 넣기

*주의 : 이 글은 overleaf를 기준으로 작성되었음





다음과 같이 style을 custom해서 설정한다.



\usepackage{listings}
\definecolor{backcolour}{rgb}{0.95,0.95,0.92}
\definecolor{codegreen}{rgb}{0,0.6,0}
\definecolor{myred1}{rgb}{255, 0, 0}


% Define a custom style
\lstdefinestyle{myStyle}{
    backgroundcolor=\color{backcolour},
    commentstyle=\color{codegreen},
    basicstyle=\ttfamily\footnotesize,
    breakatwhitespace=false,
    breaklines=true,
    keepspaces=true,
    numbers=left,
    numbersep=5pt,
    showspaces=false,
    showstringspaces=false,
    showtabs=false,
    tabsize=2,
}



\begin{lstlisting}에서 캡션, 라벨, 그리고 사용 언어까지 지정할 수 있다.

아래 코드는 pseudo code처럼 작성하기는 했는데 matlab은 highlight가 좀 아쉽다.

% code block
\lstset{style=myStyle}
\begin{lstlisting}[caption=Problem2.m, label={lst:listing-matlab}, language=Matlab]
set reference Area(S), reference length(d), mass(m), moment of inertia(Iyy) according to assignment

% Find trim point
set the range of AoA, Mach, and Altitude for calculating trim point
for i = 1:(number of AoA)
    for j = 1:(number of Mach)
        for k = 1:(number of Altitude)
            find density, velocity of sound using Environment function
            Calculate Velocity and Dynamic pressure (V and Q)
            find Coefficient using GetCoef function
            Calculate trim state/output/input
        end
    end
end

plot the trim state/input/output when h=0m depending on AoA, Mach Number

% Linearized Model
Obtain G_az, G_q transfer function
Plot Step response when AoA=0, Mach=2.0, h=0m
Plot pole-zero location
\end{lstlisting}

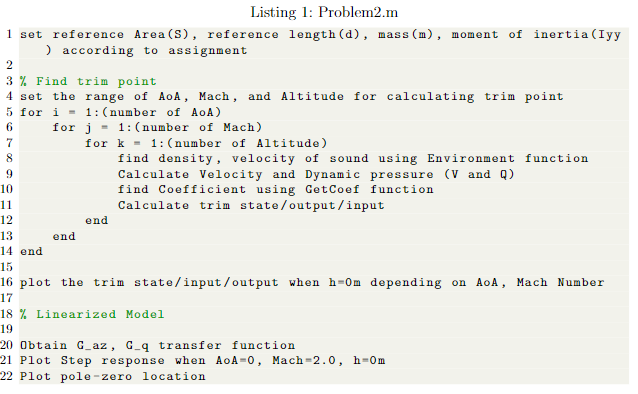

컴파일 결과
